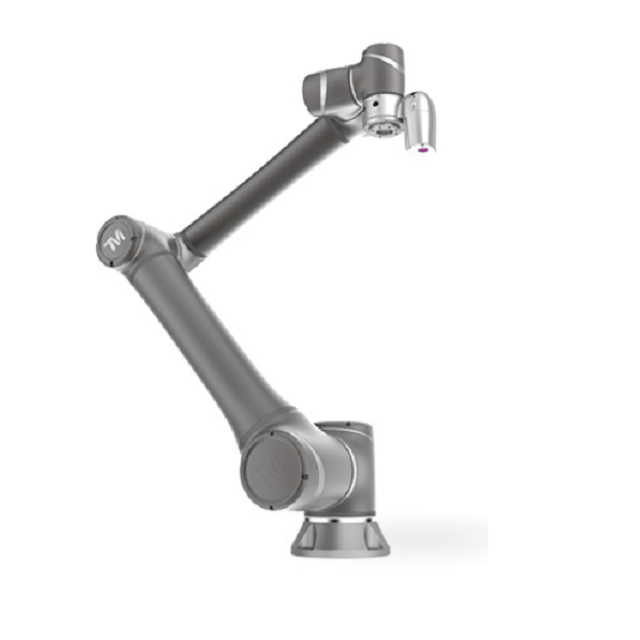

6 axis robot arm TM12 pick and place machine 12kg Payload 1300mm
Arm collaborative robot
Main Specifications:
Model: TM12
Maximum reach: 1300mm
Maximum payload: 12kg
Pose repeatability: ± 0.1mm
Number of axes: 6
Weight:33.3kg
Description:
| Product Name | 6 axis robot arm TM12 pick and place machine 12kg Payload 1300mm
Arm collaborative robot |
| Model | TM12 |
| Application | Handling & General Application |
| Maximum reach | 1300mm |
| Maximum payload | 12kg |
| Pose repeatability (ISO 9283) | ± 0.1mm |
| Number of axes | 6 |
| Mounting position | Floor, ceiling, wall, tilt |
| Weight | 33.3kg |
| Protection rating | IP54 |
| Controller | TM controller |
| Motion range |
| S | 270° to -270° |
| L | 180° to -180° |
| U | 166° tp -166° |
| R | 180° to -180° |
| B | 180° to -180° |
| T | 270° to -270° |
Greater Payload Capability With Increased Reach
The TM12 & TM14 offer class leading payload and reach capabilities.
The TM12 offers 12kg payload and a 1300mm reach and the TM14 offers
a 14kg payload and 1100mm reach.
Like the TM5 the new increased specification robots are easy to
deploy, are highly flexible, are maintenance free and provide a
high performance automation solution for manufacturing.
Built-In Vision System
TM Robot comes with built in vision hardware and integrated vision
software with human machine interface. Function such as shape
matching, barcode & QR code reading, color recognition, OCR etc are
all easily configured from the integral robot design toolbox.
THE FIRST CHOICE FOR FLEXIBLE AUTOMATION
The TM12 & TM14 collaborative robot features simple programming,
innovative integrated vision capabilities together with the latest
safety functionality, all leading to rapid deployment in a huge
variety of applications. Having vision identification functionality
completely integrated within the collaborative robot platform,
provides an easy and intuitive way to achieve robot calibration to
work piece or tooling, product selection, 1D or 2D barcodes and a
host of other vision applications, delivering a true Industry 4.0
solution.Our service:
1.Swift delivery
For common parts, we can deliver the goods within 3 days
2.Original products
All the products we sell are from origin manufacturer. We will
submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support
Including inspection,repair and maintenance, we can give all kinds
of technical support.
5.Quickly responce
Our staffs will keep 24h online and answer your question very
quickly.
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair
Shops, Manufacturing Plant, Food & Beverage Factory, Farms,
Restaurant, Home Use, Retail, Food Shop, Printing Shops,
Construction works , Energy & Mining, Food & Beverage Shops, Other,
Advertising Company.
Application:
dispensing, finishing, material handling, pick and place, assembly,
palletizing, 3d printing, and remote tcp.
Company infomation:
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the
subcompany of Dr. Industry Group Co., Ltd, was founded in January
2015, We focus on discrete industrial automation and process
industrial automation, and we can design, develop, install,
testing, debug industrial robot, its units and related accessories
including fixture, transmission device, positioning device and
control system, we can provide Welding Robot, Spray Painting Robot,
Transfer Robot, and Grinding Robot, we have many reference in
automation industry in China. Meanwhile we are agent of KUKA , ABB,
Yaskawa industrial robots, and distributor of FUNC industrial
robot. we are the important partner of them in the China market, we
have more than 7 engineers with rich expericence, who had been
worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry
Group can provide ABB and KUKA robot training for our customer,
there are weeekly training courses. In the process of industrial
automation field, Xiangjing can provide control valve, actuator,
postioner, and regulator, Xiangjing is the improtant partner of
Emerson process management in the China market, we are fisher and
rosemount project authorized agent in China, we can provide fisher
control valve, fisher regulator, rosemount pressure, level, thermal
transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO
Solenoid Valve, TopWorx Switch and so on. We have many references
on power, chemical industry in China. Xiangjing has two teams, one
is for discrete industrial automation and the other is for process
industrial automation with rich experience, we are good partner of
you.
