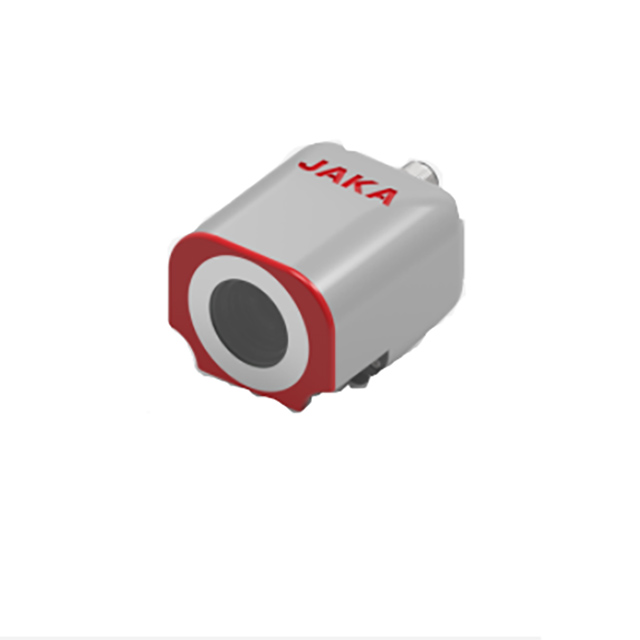

6 axis JAKA Ai 18 cobot with smart camera Lens 2D used as picking and packing robot arm
Main Specifications
Maximum reach: 1073 mm
Maximum payload: 18 kg
Pose repeatability (ISO 9283):± 0.03 mm
Number of axes:6
Mounting position:any angle
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption: 600W
Power supply:DC 24V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
| Product Name | 6 axis JAKA Ai 18 cobot with smart camera Lens 2D used as picking and packing robot arm |
| Application | 6 axis JAKA Ai 18 cobot with smart camera Lens 2D used as picking and packing robot arm |
| Model | JAKA Ai 18 cobot |
| Robot Arm | |
| Maximum reach | 1073mm |
| Maximum payload | 18 kg |
| Pose repeatability (ISO 9283) | ± 0.03 mm |
| Number of axes | 6 |
| Certificate | CR, CE, 15066 |
| Temperature range | 0-50℃ |
| Weight | 35 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 600W |
| Material | Aluminum alloy |
| Ambient temperature | 0-50°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±270° |
| A2 | -85°,+265° |
| A3 | ±175° |
| A4 | -85°,+265° |
| A5 | ±270° |
| A6 | ±270° |
| Controller | |
| Size | 410mm*307mm*235mm |
| Weight | 12Kg |
| Cable length | 6m |
| Colour | silver and red |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP44 |
| I/O port | 16 in/16 out |
| Teach pendant MT(PAD/Mobile)APP | |
| Size | 355mm*235mm*54mm |
| Weight | 1.8Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 6m |
| Protection rating | IP54 |
| Colour | silver and red |
